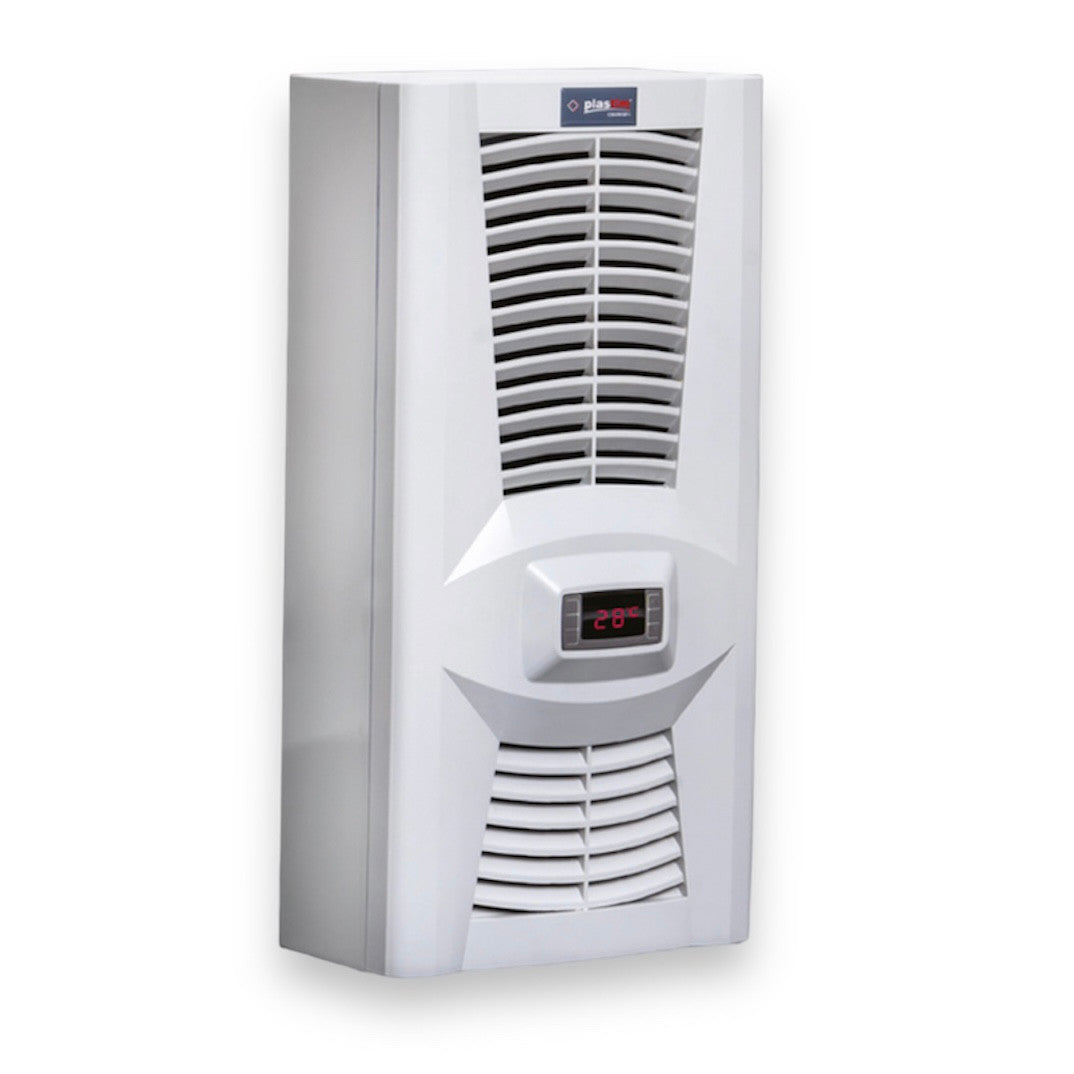

Klimaanlage für Schaltkästen / Kühler 380W, PAD0380.01, Plastim

Auf Lager - 4 Artikel verfügbar
Artikelnummer: PAD0380.01
Gemeinsamer Preis €1.076,40 inkl. MwSt.

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

Die von uns gelieferten elektrischen Geräte entsprechen hohen Qualitätsstandards, haben eine Garantie von 24 Monaten und erfüllen alle Anforderungen der EU. Im Reklamationsfall wird keine Rücksendegebühr erhoben.

"Design Serie" Klimaanlage für Schaltkasten / Kühlmaschine 380 Watt / 1300 BTU für Schaltkasten und Automatisierungsbord Seiten- oder Wandmontage.

Der PAD0380.01 (PLASTIM) Klimaanlage für Schaltkästen ist mit HIGHLYs hochmodernen rotierenden Kompressor vom offenen Typ, Dixell-Thermostat, Kondensatverdampfer und Endschalter zur Regelung der Öffnung der Schaltkastentür ausgestattet.

Alles, was nötig ist, um die Klimaanlage für den Schrank zu installieren, ist enthalten - Dichtungen, Abluftrohr, Montageschrauben, Stromanschluss.

TECHNISCHE DETAILS PAD0380.01
Kühlleistung L35 / L35 380W / 1300BTU
Betriebsspannung 230VAC
Frequenz 50/60 Hz
Anlaufstrom 3.7A
Betriebsstrom 1.1A
Sicherung 5A
Stromverbrauch 325W
Betriebstemperaturbereich 0-55 °C
Thermostat Werkseinstellung 35 °C
Differential 4 °C
Max. Luftvolumen internes System 340 m³/h
Max. Luftvolumen externes System 340 m³/h
Typ Kältemittel R134a
Menge Kältemittel 120gr
Abmessungen 560x285x150mm
Weight 15kg
Lautstärke 75dB
Schutzgrad (internes Circuit) IP 54
Schutzgrad (externes Circuit) IP 34
Farbe RAL7035
Kompressor HOOG/HITACHI
Typ Kompressor Rotating
Fans EBMPAPST
Montagemethode Wall mounting
