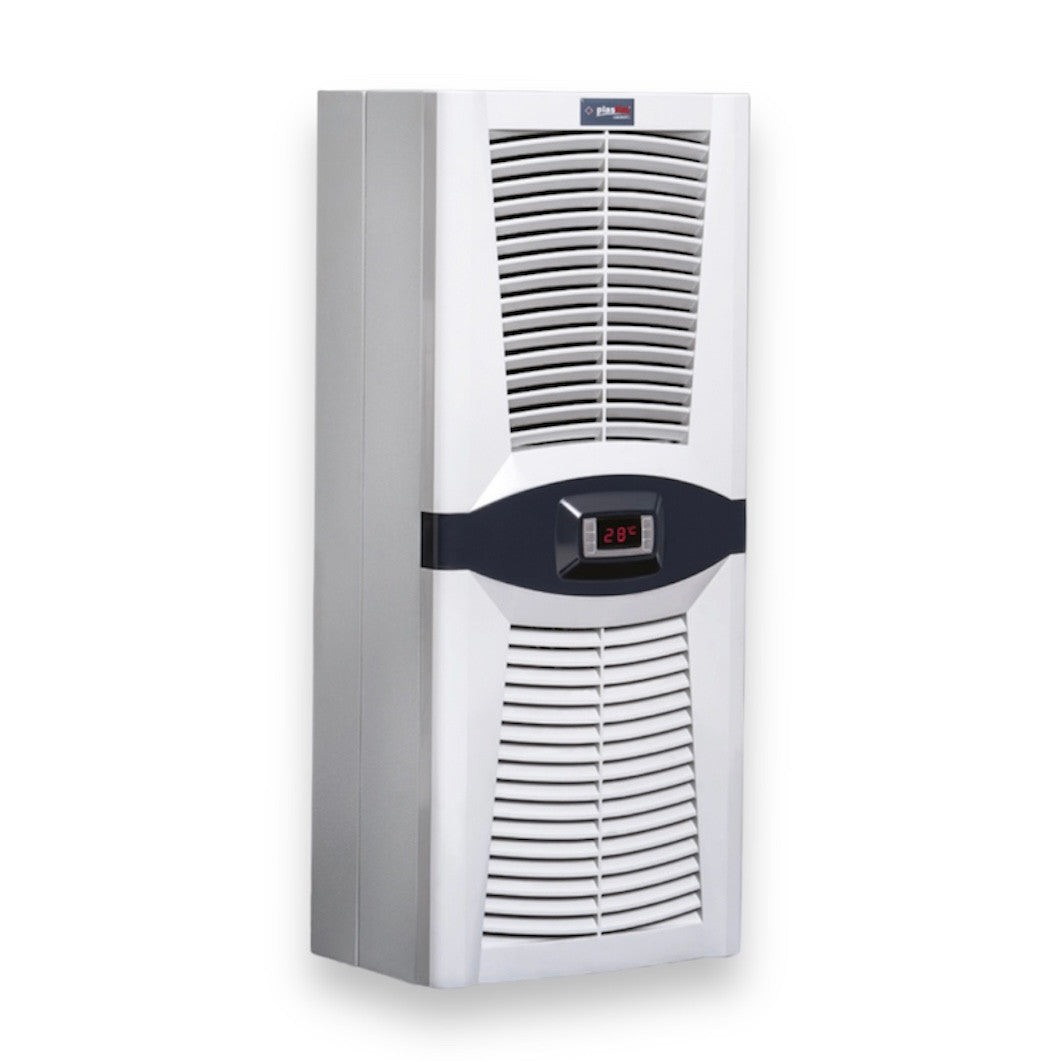

Klimaanlage für Schaltkästen / Kühler 1600W, PAD1600.01, Plastim

Auf Lager - 8 Artikel verfügbar
Artikelnummer: PAD1600.01
Gemeinsamer Preis €1.782,00 inkl. MwSt.

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

Die von uns gelieferten elektrischen Geräte entsprechen hohen Qualitätsstandards, haben eine Garantie von 24 Monaten und erfüllen alle Anforderungen der EU. Im Reklamationsfall wird keine Rücksendegebühr erhoben.

Klimaanlage für Schaltkasten/Kühler 1600 Watt (Design-Serie) für die Seiten- oder Wandmontage von Schaltkästen und Automatisierungsanlagen.

Der PAD1600.01 (PLASTIM) Schaltschrank-Klimaanlage ist mit dem hochmodernen offenen Rotationskompressor von HIGHLY, einem Dixell-Thermostat, einem Kondensatverdampfer und einem Endschalter zur Regelung der Öffnung der Schaltschranktür ausgestattet.

Alles, was nötig ist, um die Klimaanlage für den Schrank zu installieren, ist enthalten - Dichtungen, Abluftrohr, Montageschrauben, Stromanschluss.

TECHNISCHE DETAILS

PAD1600.01

Kühlleistung L35 / L35

1600W / 5500BTU

Betriebsspannung

230VAC

Frequenz

50/60 Hz

Anlaufstrom

8A

Betriebsstrom

3.2A

Sicherung

10A

Stromverbrauch

725W

Betriebstemperaturbereich

0-55 °C

Thermostat Werkseinstellung

35 °C

Differential

4 °C

Max. Luftvolumen internes System

510 m³/h

Max. Luftvolumen externes System

510 m³/h

Typ Kältemittel

R134a

Menge Kältemittel

600gr

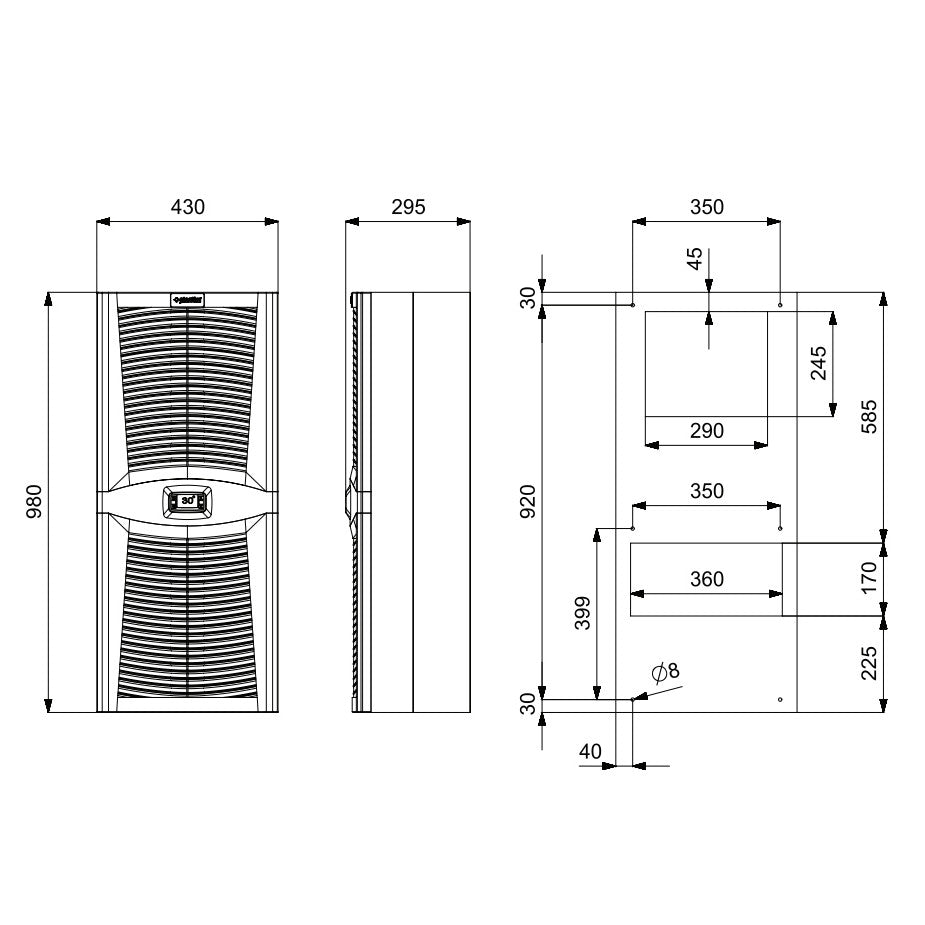

Abmessungen

980x430x270mm

Weight

45 kg

Lautstärke

79dB

Schutzgrad (internes Circuit)

IP 54

Schutzgrad (externes Circuit)

IP 34

Farbe

RAL7035

Kompressor

HOOG/HITACHI

Typ Kompressor

Rotating

Fans

EBMPAPST

Montagemethode

Wall mounting
